Corsica V1
Category:   Backyard Cabin's
Typology:   Residential Build
Bedroom:   1
Bathroom:   0
Total Size:   30m2

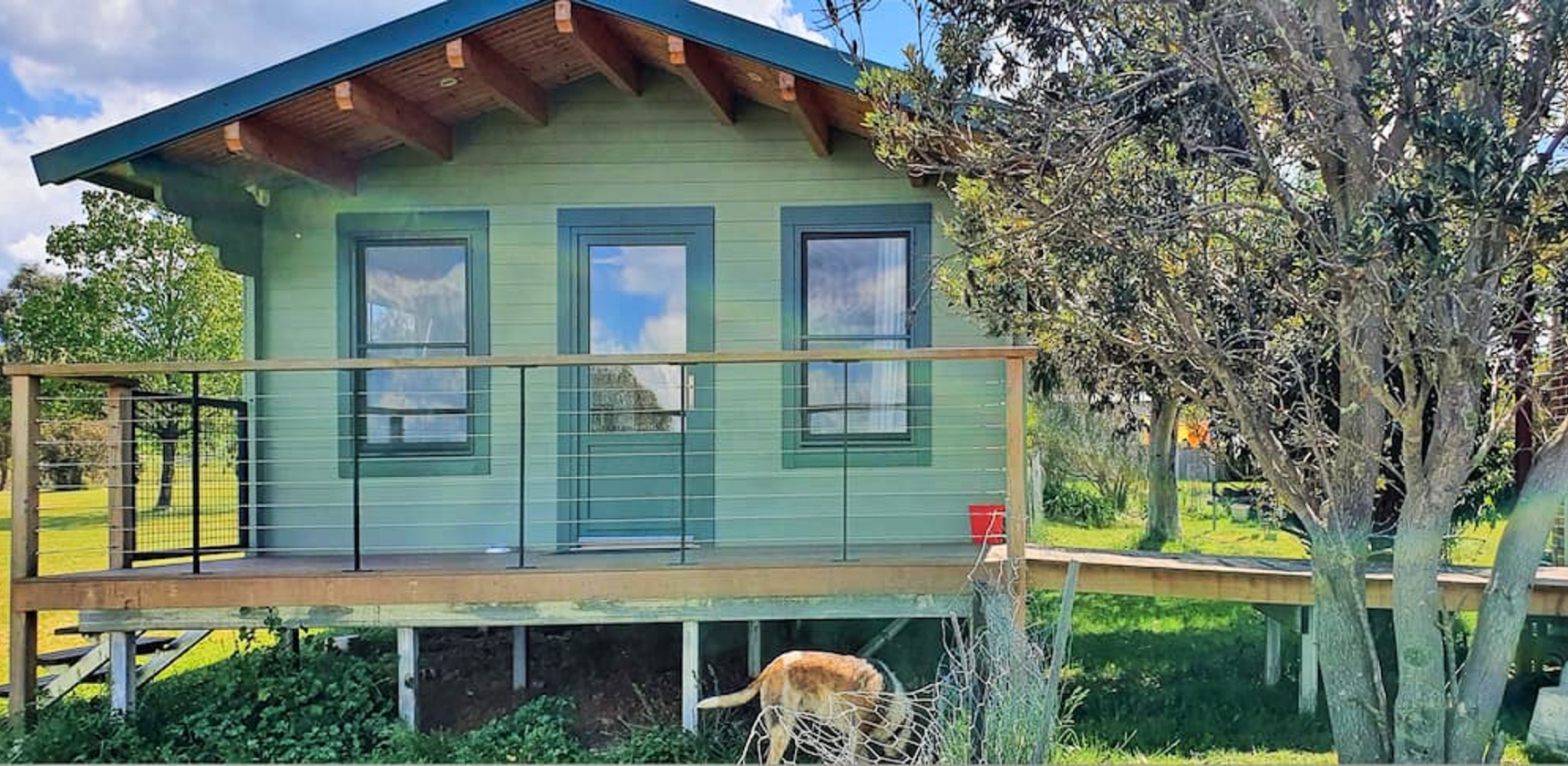

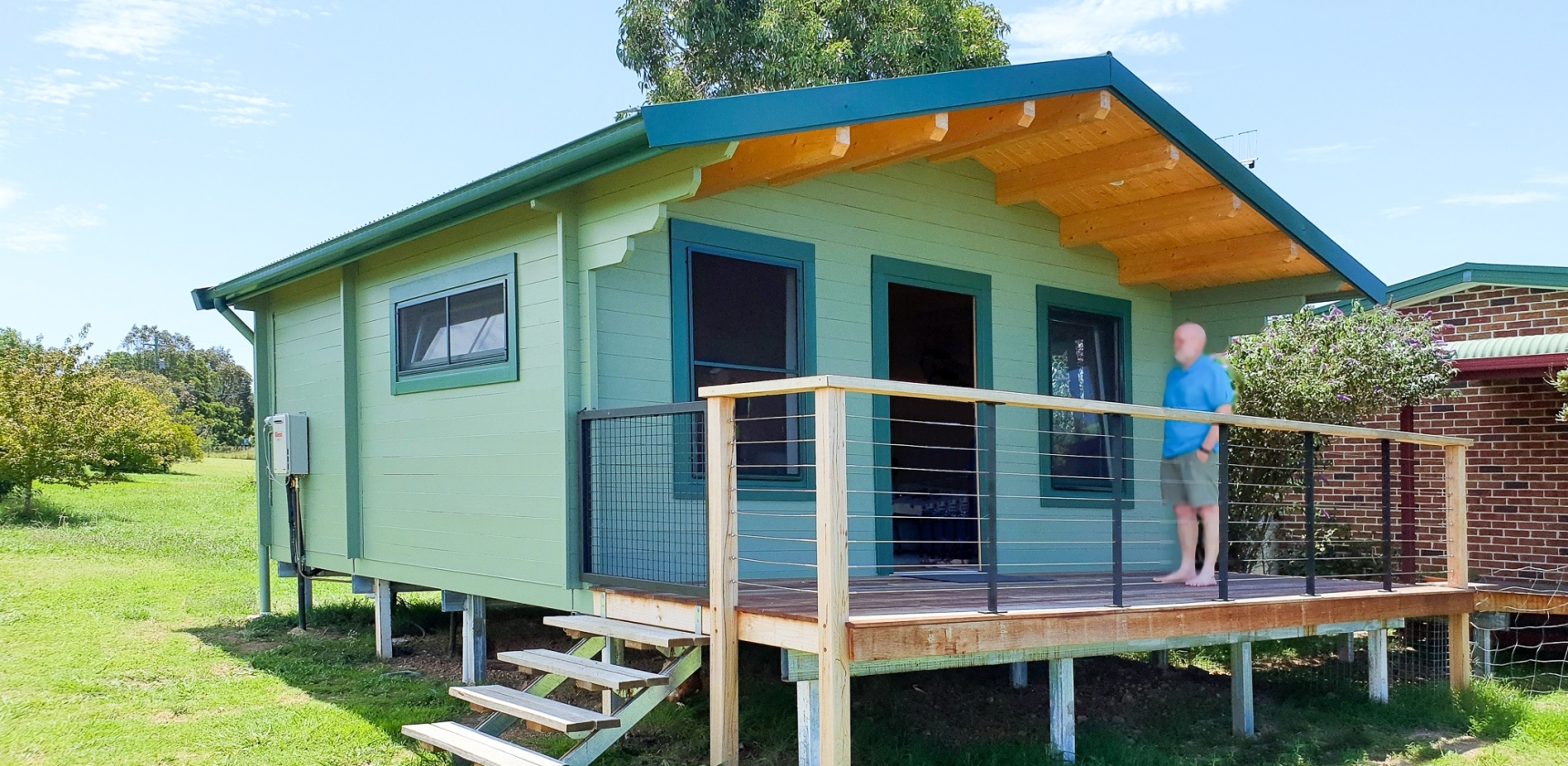

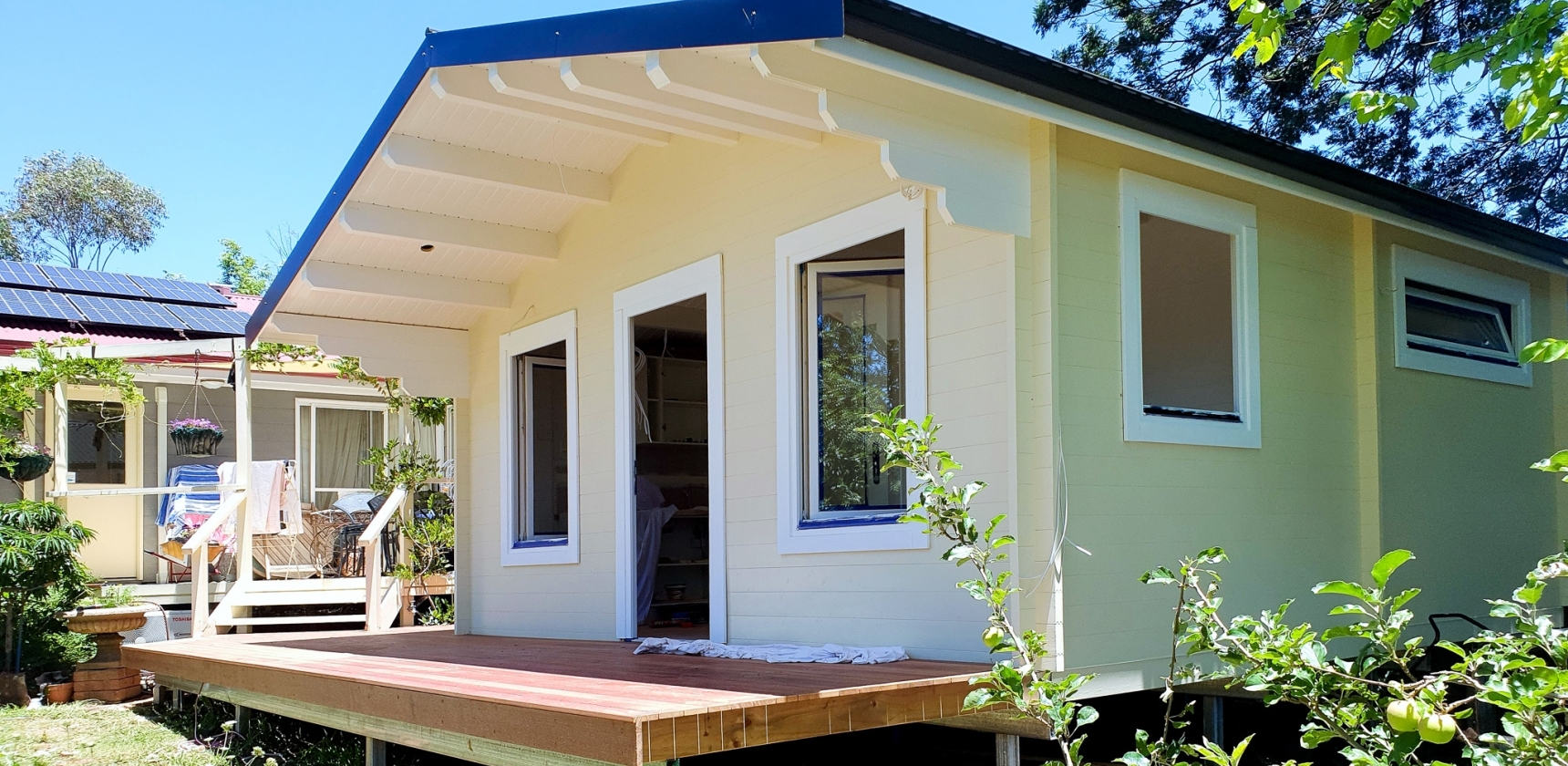

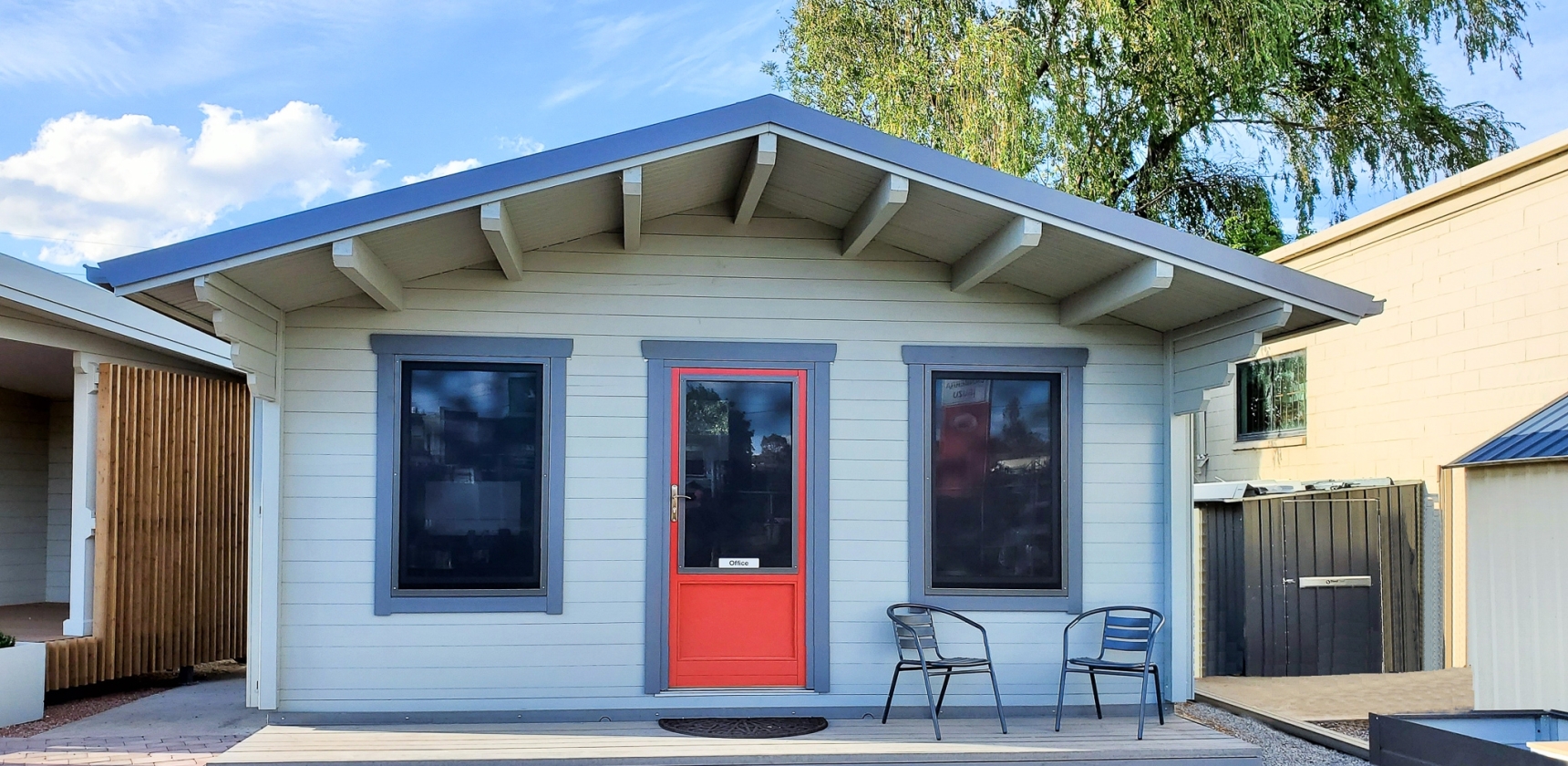

Our classic style Corsica cabin is now available in a 30m² 1 bedroom size. This cabin is packed with superb features such as double glazing on all doors and windows, and superb grade 45 mm solid timber walls. It is ideal for a stay-at-home children's Family Home, Parent's Retreat or a Teenage Studio. Constructed on a prepared level base, the Corsica timber studio can be assembled in 1-2 days.
Master Plan
- Wall Thickness: 45cm
- Double Glazed
- Width: 5.5X5.4m
- Height: 3.2X2.3m
- Packaging: 2 Pallets
- Weight: 3,000Kg
- Set of drawings including footings plan and engineering for the building
- Structure: Factory treated superior grade Nordic spruce
- Structural tie-down system - 14 stainless steel rods
- Roof structure of 7 load bearing LGL rafters, thickness 90mm,
h = 175mm - 20mm T&G ceiling boards
- Ceiling trimmings
- Fascia boards
- Timber covers for all external corner nibs
- External Double-glazed timber doors and windows
- 1 External door (1000 x 2100mm, DG 4/16/4mm)
- 2 tilt&turn windows (1000 x 1520mm, DG 4/16/4mm)
- 2 tilt&turn windows (1200 x 1070mm, DG 4/16/4mm)
- 1 window (560 x 620mm, DG 4/16/4mm), installed to your
preferred location - Timber architraves for all doors and windows
- 2 internal timber doors
- 4 pre-drilled holes for electricity, 16mm
- All hardware
- Drawings for assembly with all boards marked
Flexible options are sourced locally and can be ordered from our Authorized supplier, your local builder. The builder will customize the options to suit your taste and budget.
- Custom size veranda/decking
- Timber Handrail and external steps
- Timber or steel sub-floor or a slab base
- Colorbond roofing in colour of your choice
- Gutters and down pipes
- Upgrade to BAL – Bushfire Attack Level
- Flooring of your choice
- Electrical
- Plumbing
- Kitchen fit out Bathroom fit out
- Additional Windows
- Painting
