Ibiza
Category:   Granny Flat's
Typology:   Residential Build
Bedroom:   2
Bathroom:   1
Total Size:   78m2
Ibiza is the 2 bedroom granny flat that combines modern style with natural aesthetics. Designed in linear style, even with Colorbond cladding Ibiza looks warm and inviting with the natural timber details: decking area, timber architraves and fascia. Like any other building from our granny flats range, cladded Ibiza is an ultra-low energy building that will require little energy for heating or cooling, saving you money spent on bills and comforting people even in extreme weather areas such as ACT. Ibiza without external cladding has a modern and sleek look and will suit any type of property, whether it is the bush, beach, or residential area.
Master Plan
Area:  78m2
Living Zone:  60m2
Veranda:  12m2
- Double Glazed
- Length: 8.1m
- Width: 8.9m
Features
- Living area less than 60m2 conforms to council requirements for a 2nd dwelling
- Modern and sleek style living and entertaining spaces
- Light and airy with an abundance of windows

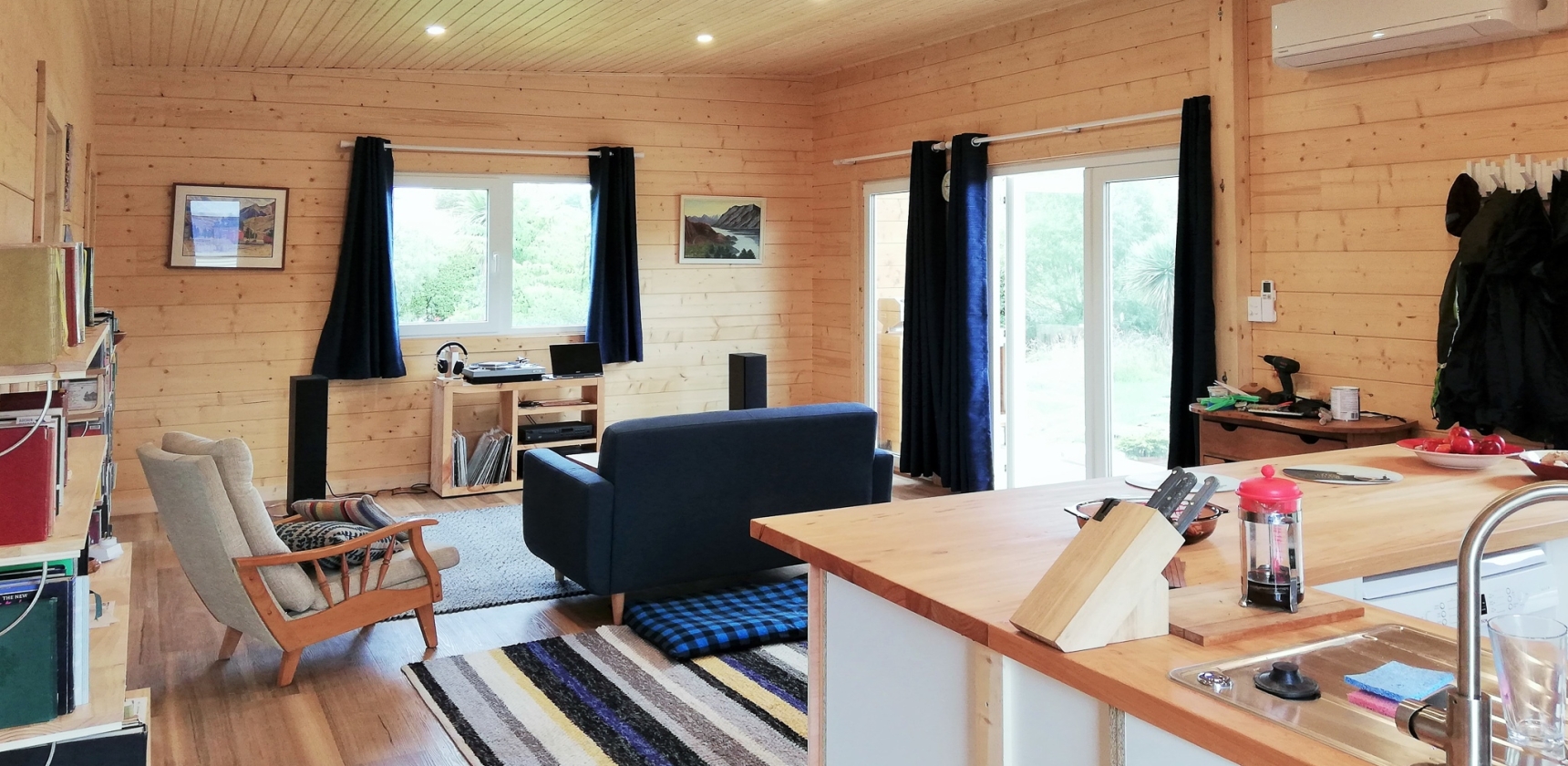

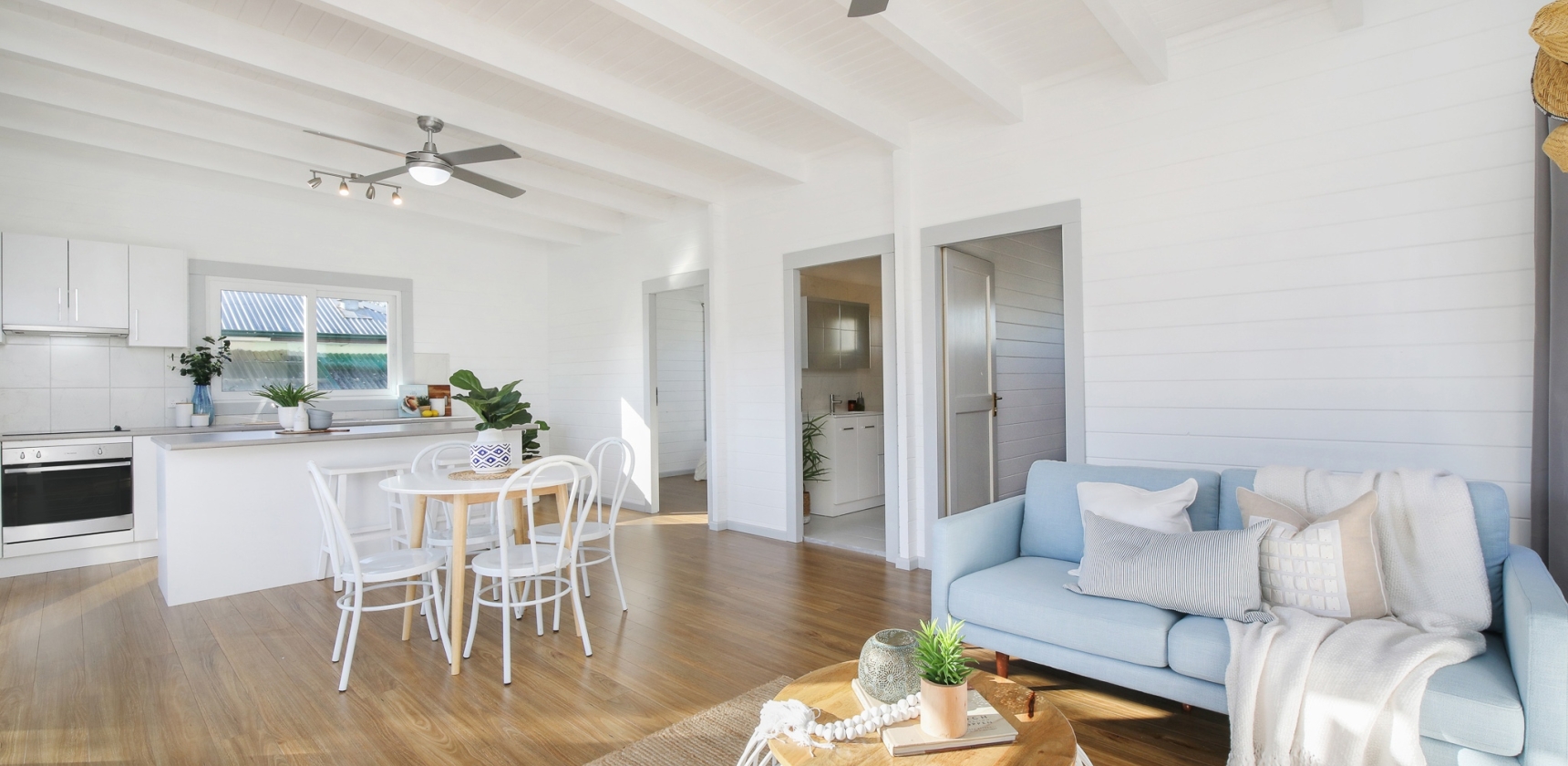

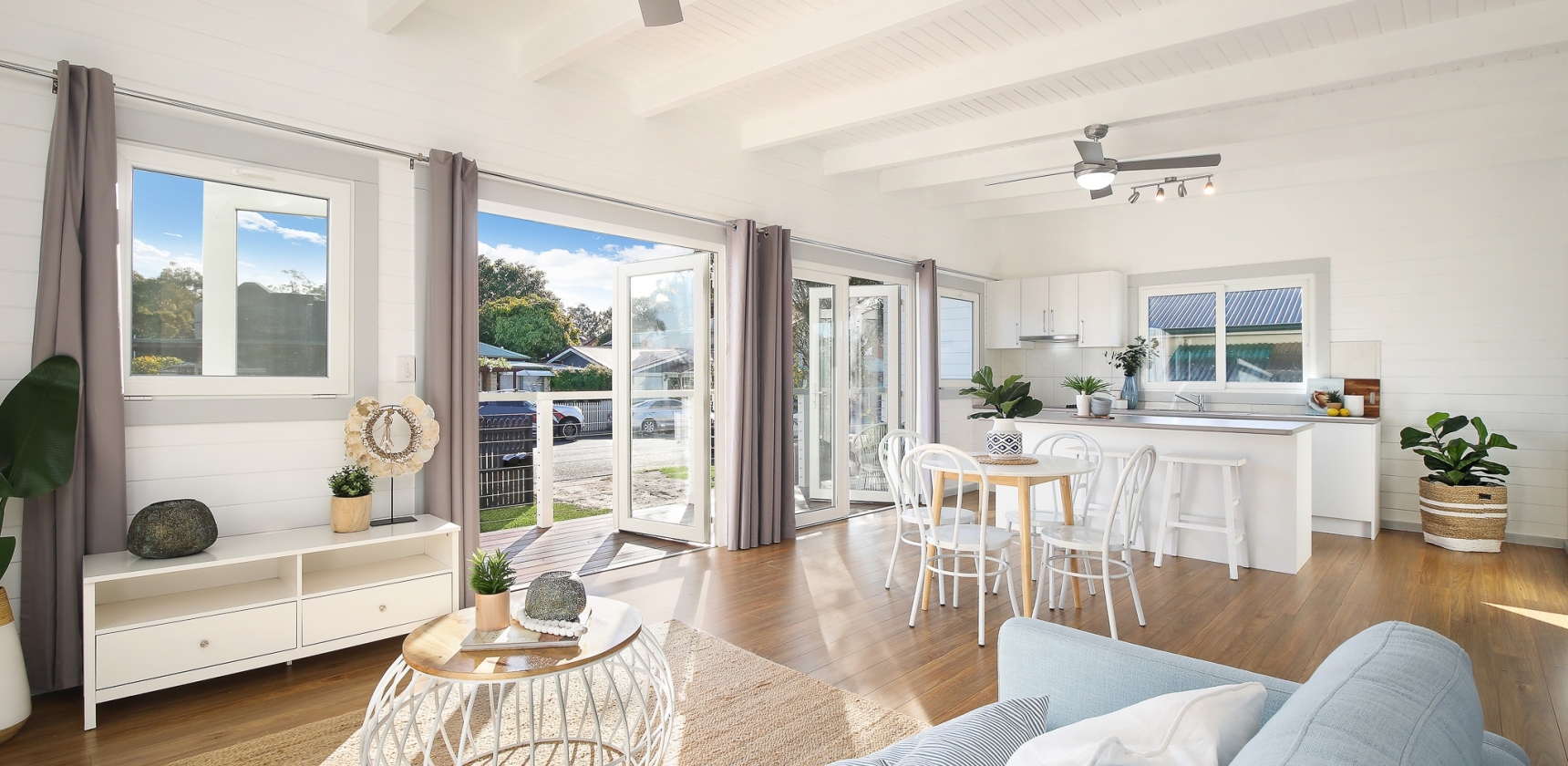

- Open plan living seamlessly brings the outdoors through the windows

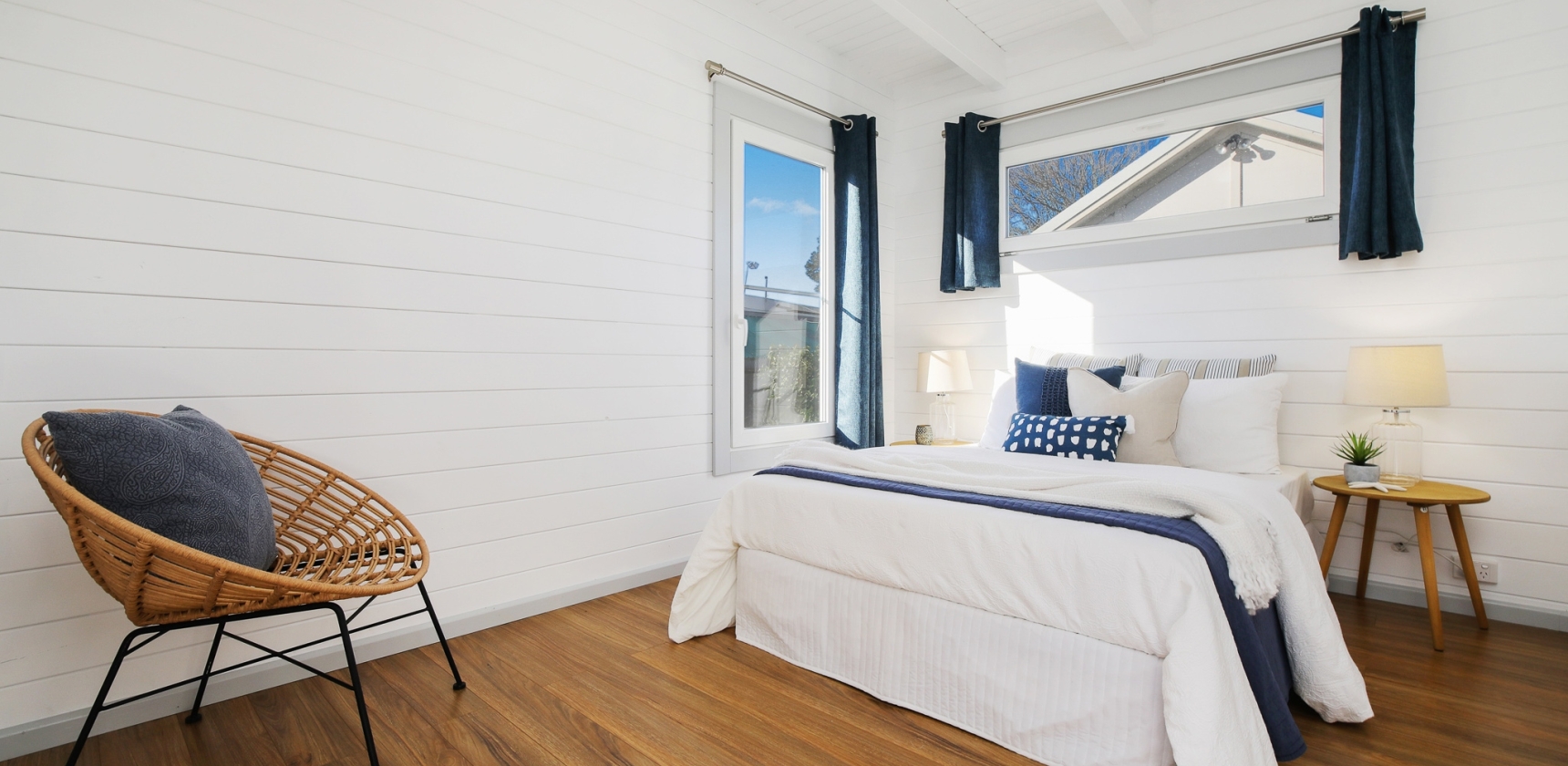

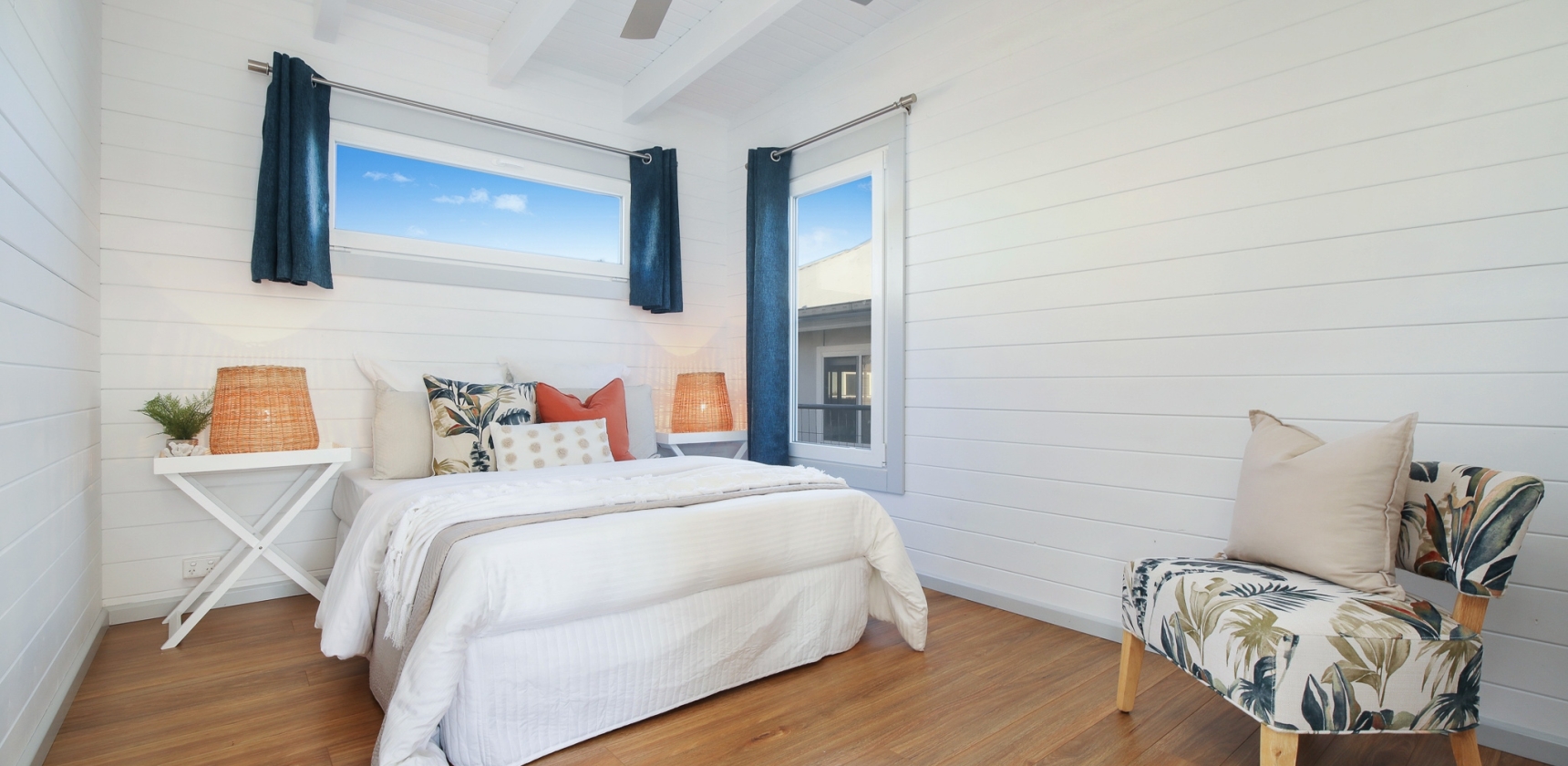

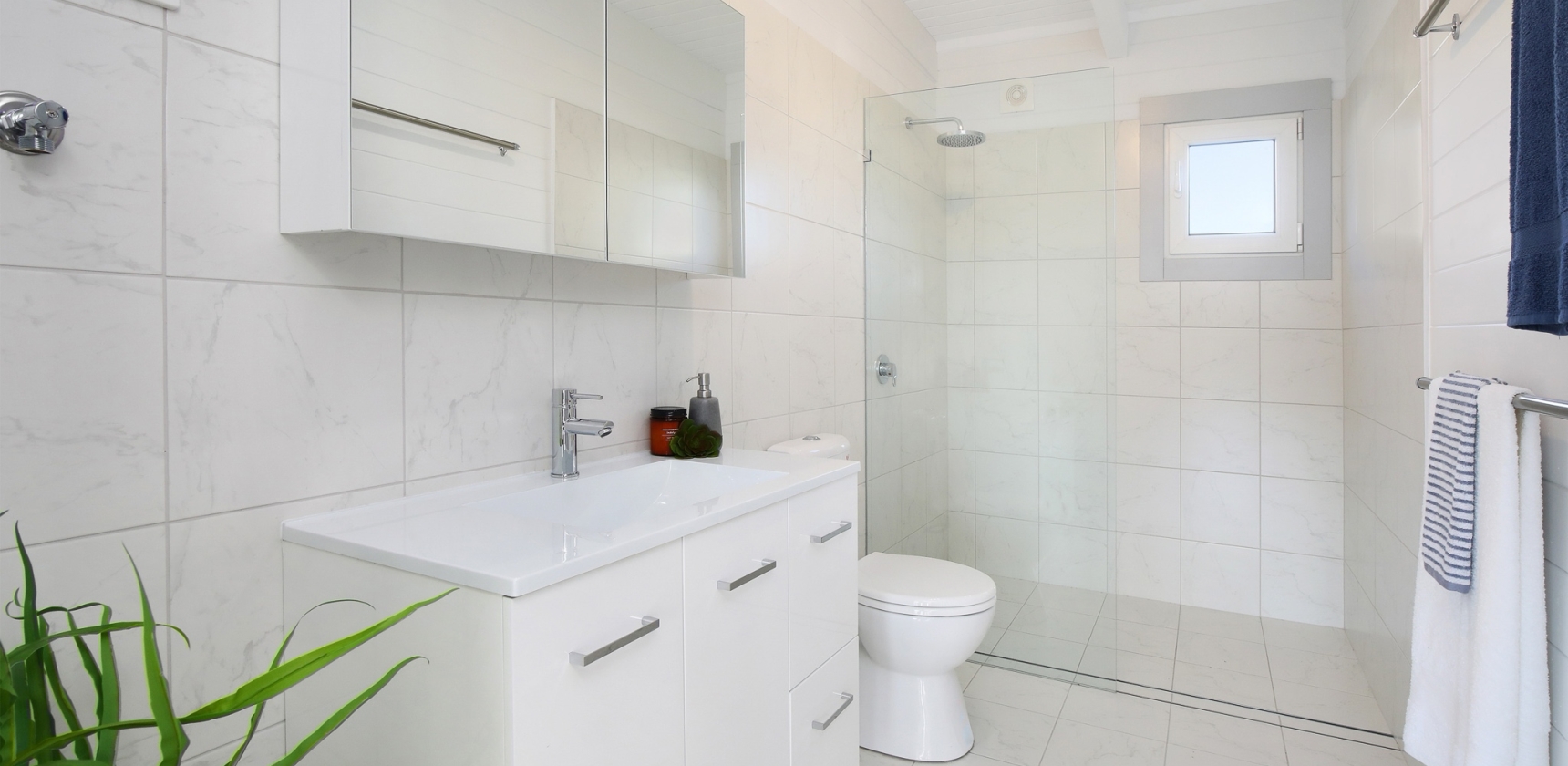

- Two bedrooms separated by a generously sized bathroom
- Good airflow throughout home

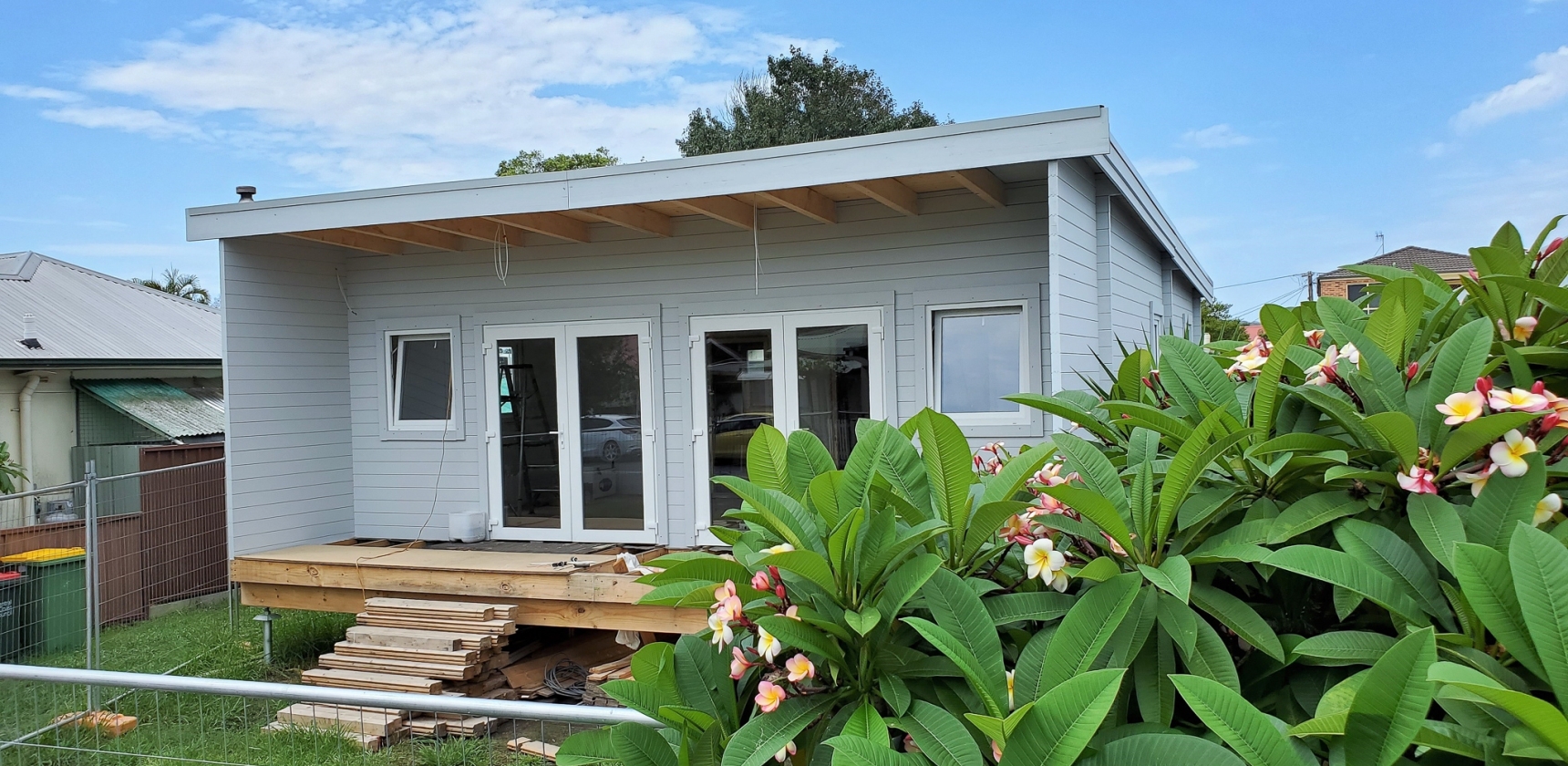

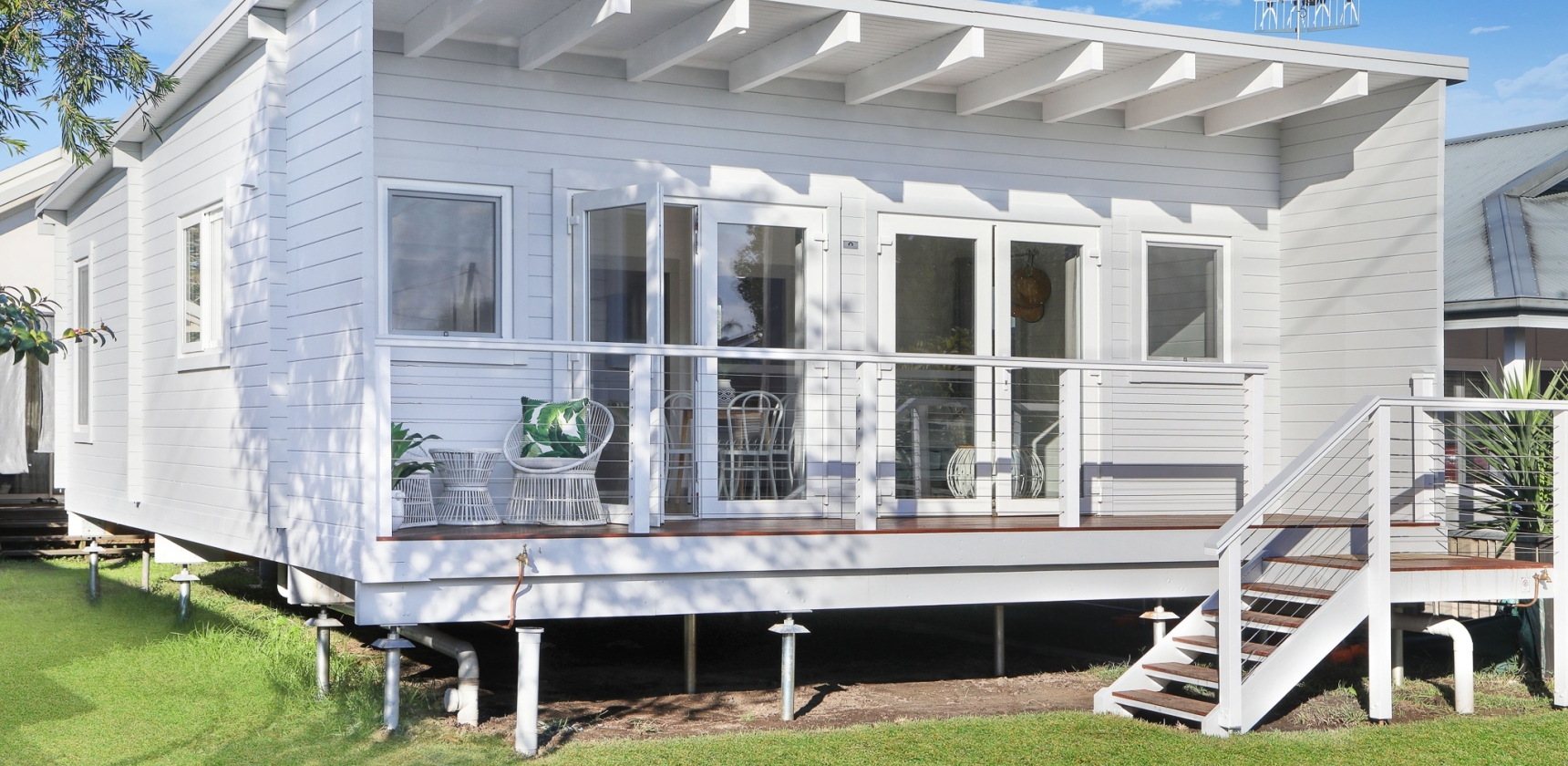

- Spacious versatile front veranda
- Set of drawings including footings plan and engineering for the building
- Structure with external & internal walls, kiln-dried laminated 60mm Nordic Spruce
- Structural tie-down system - 17 stainless steel rods
- Roof structure 9 load bearing laminated rafters thickness 90mm, h = 175mm
- 19mm T&G ceiling boards
- Ceiling trimmings
- Fascia boards
- Timber covers for all external corner nibs
- External Double-glazed uPVC doors and windows, top quality REHAU profile, white colour
- 2 External tilt&slide doors (1900 x 2110mm, safety DG 4/16/4mm)
- 2 fixed windows (877 x 2110mm, safety DG 4/16/4mm)
- 3 tilt&turn windows (830 x 1590mm, DG 4/16/4mm)
- 2 tilt windows (1800 x 610mm, DG 4/16/4mm)
- 1 tilt&turn window (1460 x 880mm, DG 4/16/4mm)
- 1 tilt&turn window (550 x 610mm, safety DG 4/16/4mm), customizable placement of two 830 x 1590mm windows, marked red on the floor plan
- Timber architraves and fitted fly screens for all windows
- 3 internal timber doors
- 12 pre-drilled holes for electricity
- All hardware
- Drawings for assembly with all boards marked
Flexible options are sourced locally and can be ordered from our Authorized supplier, your local builder. The builder will customize the options to suit your taste and budget.
- Custom size veranda/decking
- Timber Handrail and external steps
- Timber or steel sub-floor or a slab base
- Colorbond roofing in colour of your choice
- Gutters and down pipes
- Internal and external cladding
- Upgrade to BAL – Bushfire Attack Level
- Upgrade to Cyclonic region
- Flooring of your choice
- Electrical
- Plumbing

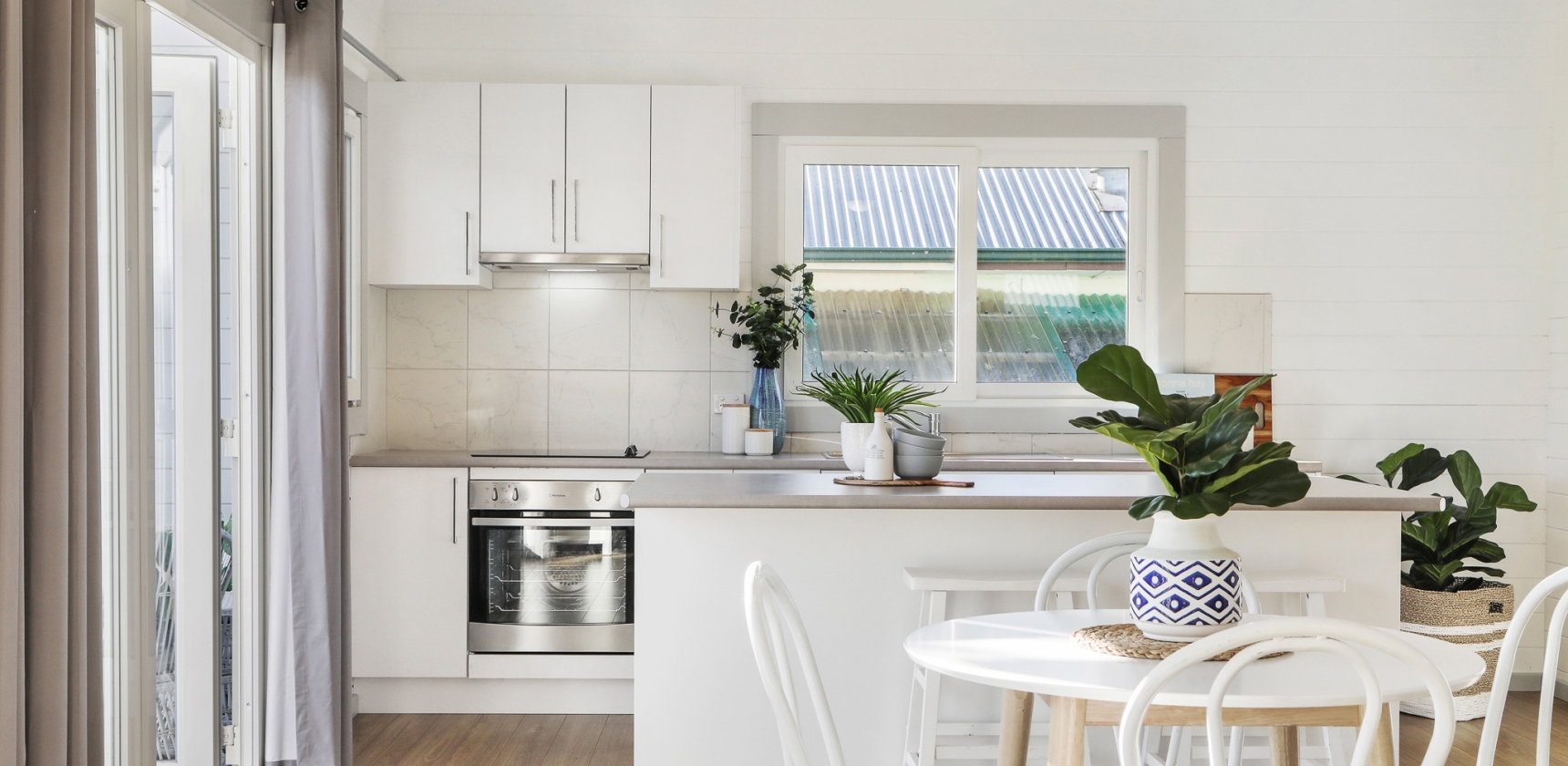

- Kitchen fit out Bathroom fit out
- Additional Windows
- Painting
